QuicKey™
$0.00
Advantages of QuicKey™

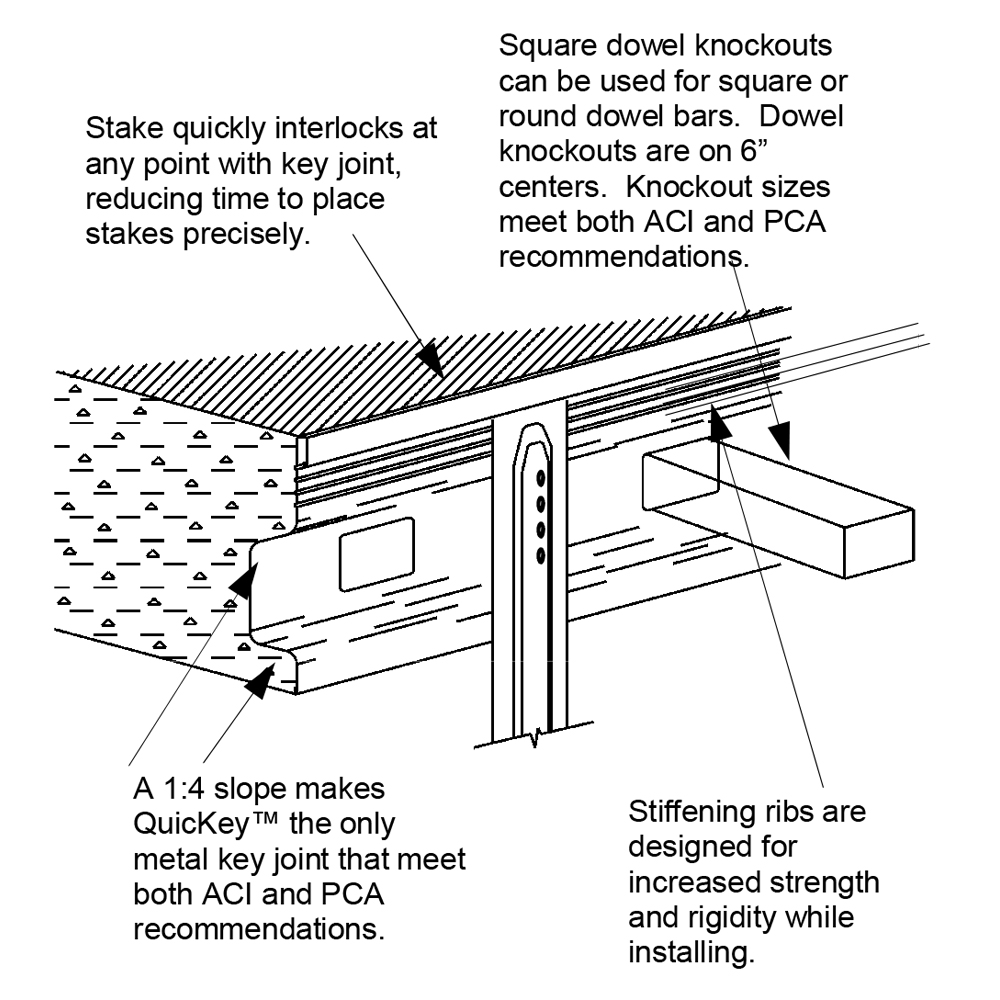

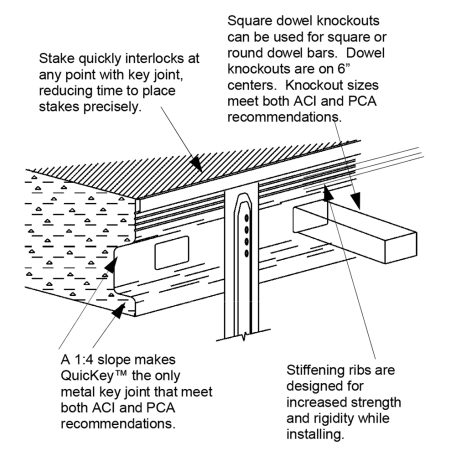

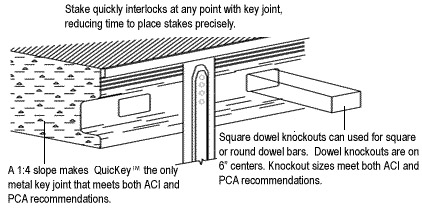

- QuicKey™ [Patent No. 6502359] is the only galvanized joint system that features knockouts for square dowels, which provide better load transfer over round dowels and also reduce edge curl on the slab.
- Knockout sizes meet both ACI and PCA recommendations for the design of tongue and groove key joint.
- LOCKING-TAB™ stakes provide a positive interlock between stake and key joint that eliminates floating or rising from the stake, minimizing high spots. The stake profile features a non-twist design which allows the stake to be driven at a straight angle.
- Saves on installation time, stake quickly interlocks at any point with key joint, reducing time to place stakes precisely.
- Stiffening ribs are designed for increased rigidity while installing.

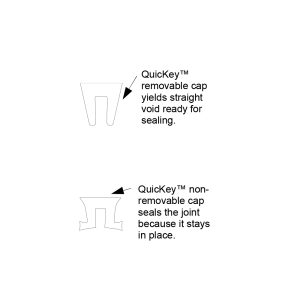

- QuicKey™ removable cap yields straight void ready for sealing.
- Non-removable cap seals the joint because it stays in place.
QuicKey™ Data Sheets
| Cat # | Slab | A | B | C | Knockout |
|---|---|---|---|---|---|
| QK35 | 4″ | 3 1/8″ | 2″ | 3/4″ | 7/8″x1 3/8″ |
| QK45 | 5″ | 4 1/8″ | 2 1/2″ | 3/4″ | 7/8″x1 3/8″ |
| QK55 | 6″ | 5 1/8″ | 3″ | 3/4″ | 1 1/4″x1 1/2″ |
| QK75 | 8″ | 7 1/8″ | 4″ | 1″ | 1 1/4″x1 1/2″ |
| QK95 | 10″-12″ | 9 1/8″ | 5″ | 1″ | 1 1/4″x1 1/2″ |
