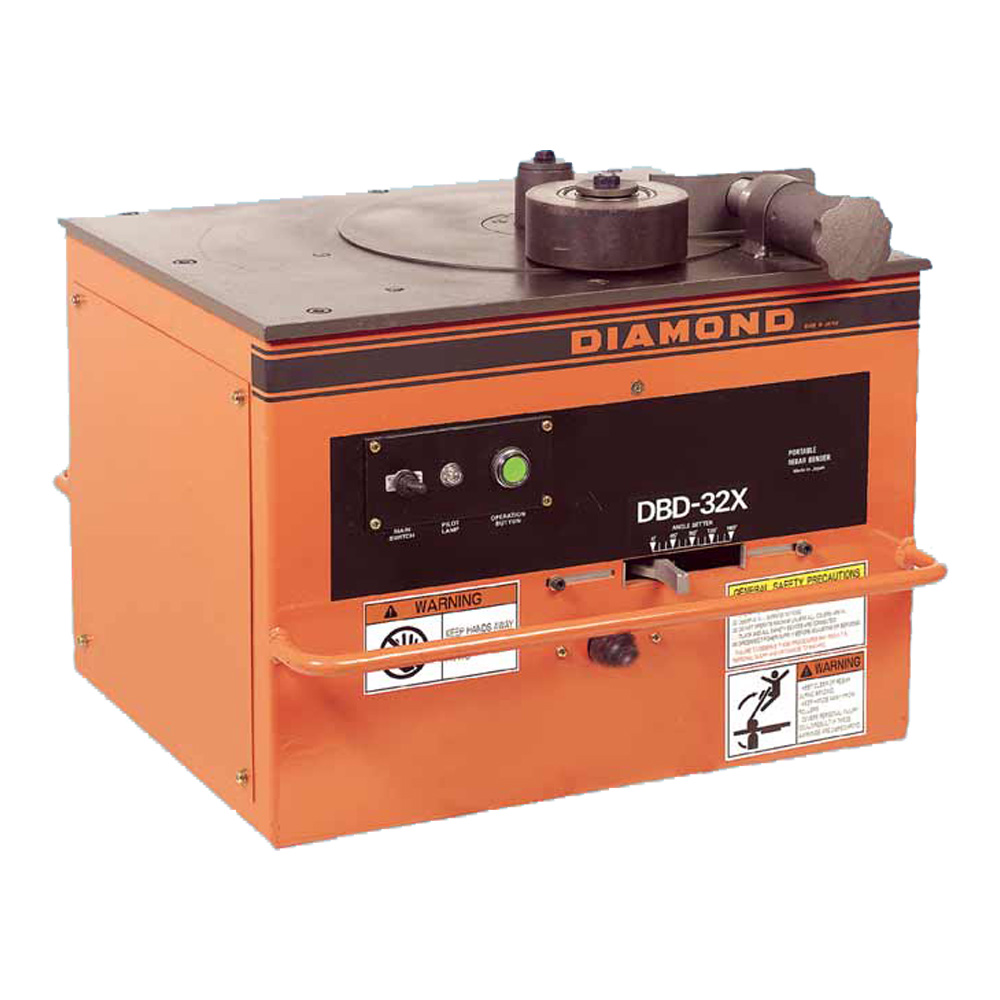

DBD-32X

The DBD-32X is a heavy-duty portable table-type bender. This unit is the largest 115 volt portable rebar bender available. This powerful electrically driven mechanical unit will easily bend 1-1/8” Grade 60 rebar 180 degrees in only 8 seconds. This fast and accurate bender is a valuable tool for small to medium size production shops. It comes standard with a hands-free foot pedal control switch and a complete bending radius roller set. This unit is available separately or in combination with a cutter mounted on a skid, stand or trailer unit. An optional stand is also available.

Details:

• Capacity: 11/8″ grade 60
• Speed: 8 seconds
• Bending Angle: 0-180 deg.
•  Voltage: 115V 50/60Hz
• Amperage: 12 amps
• Weight (kg): 386 lbs. (180.0)
• Dimensions (in.): 23.0 x 24.2 x 18.7
• L x W x H (mm): 590 x 620 x 480

Rebar benders are shipped complete with a set of bending rollers and a foot pedal.

Optional DBD series bender stands, combination cutter/bender stands and workstations are available upon request.
