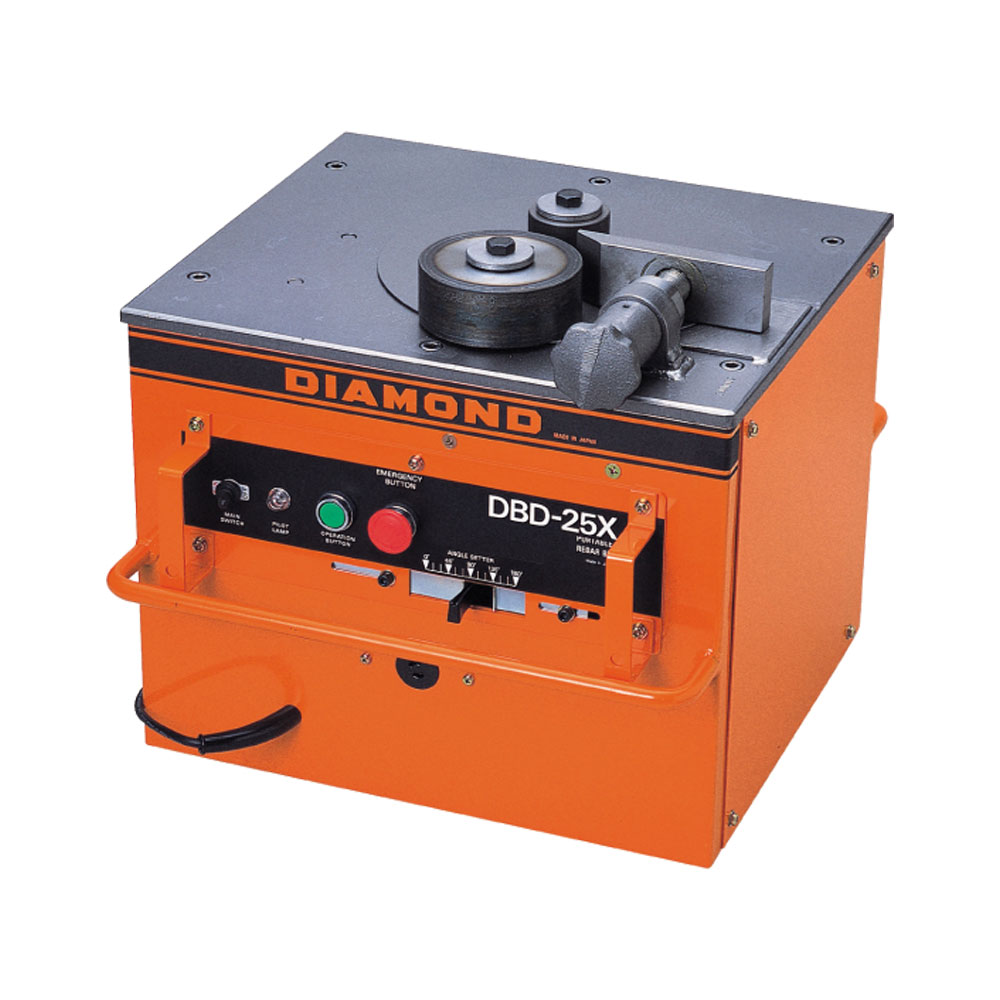

Rebar Bender Model DBD-25X
The DBD-25X heavy-duty portable rebar bender helps save valuable man-hours by bending rebar up to #7 (7/8) grade 60 at the job site or in your shop. This strong electrical-mechanical bender has two preset angle locks for repeating the same angle bend. The lever-type angle selector can be set to accurately bend any angle from 0-180 degrees. An emergency stop switch and two lifting handles are standard features. The DBD-25X portable rebar bender comes complete with a set of (6) bending rollers in a steel carrying case, a tool kit, a bender cover, and a standard foot pedal control switch for hands-free bending. Optional stands, circular pattern rollers, and a highway trailer unit are available.
Details:
- Capacity: 7/8″ grade 60
- Speed: 6 seconds
- Bending Angle: 0-180 deg.
- Voltage: 114V 50/60Hz
- Amperage: 12 amps
- Weight (kg): 189.6 lbs. (86.0)
- Dimensions: 19.1 x 21.5 x 17.2
- L x W x H (mm): 490 x 550 x 440
Rebar benders are shipped complete with a set of bending rollers and a foot pedal.
Optional DBD Series bender stands, combination cutter/bender stands and workstations are available upon request.
