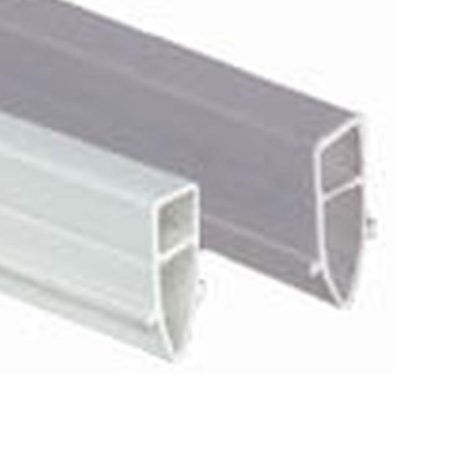

DECK-O-JOINT – PVC Expansion Joint

DECK-O-JOINT is a decorative expansion joint for use wherever concrete is placed. It is economical, long-lasting, and trouble-free. DECK-O-JOINT resists acids, alkali, chlorine, etc. A light hose down keeps it bright and clean.

DECK-O-JOINT will not whip or warp during application. It locks into concrete and adjusts for any slab movement. DECK-O-JOINT’s exclusive channel design prevents excessive seepage and water damage. Colors: Stone Gray, Desert Tan, Dura-White.

Application

Press DECK-O-JOINT into the wet concrete until top is level with the concrete. Float concrete to fill all voids adjacent to DECK-O-JOINT. Finish in the normal manner. Remove protective tape.

Type	Width	Depth	Length
SPEED-E-JOINT	N/A	1″ (25.4 mm) 1 ½” (38.1 mm) 2″ (50.8 mm)	10’ (3.05 m)
DECK-O-JOINT	5/8″ (15.88 mm)	1 5/8” (41.3 mm)	10’ (3.05 m)
KEYWAY	2.5” (63.5 mm) 3.5” (88.9 mm)	3 ½” (88.9 mm)	10’ (3.05 m)
SNAP-CAP	3/8″ (9.53 mm) 1/2″ (12.7 mm) 3/4″ (19.05 mm) 1″ (25.4 mm)	1/2″ (12.7 mm)	10’ (3.05 m)
