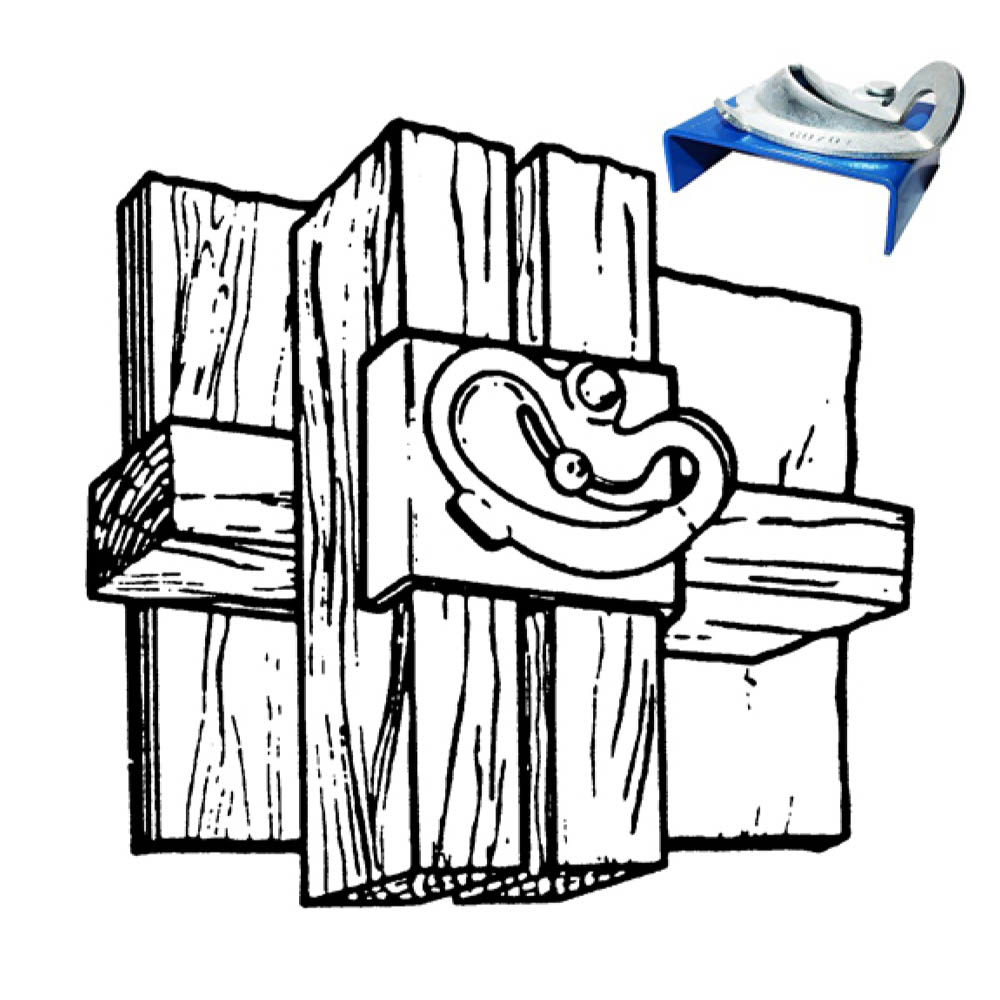

A82 Jahn “C” Bracket



Dayton Superior A82 Jahn “C” Bracket is designed for use with single 2 x 4 studs, double 2 x 4 wales and 8-1/4″ L&W snap ties to attach vertical strongbacks to the form. The bracket eccentric compensates for lumber size imperfections. The A82 bracket can also be used with double wales to support a horizontal plywood joint. See preparation steps after A89 for bracket spacing and concrete placement rates.

Applications

A82 Jahn “C” Bracket is designed for use with single 2 x 4 studs, double 2 x 4 wales and 8-1/4” L&W snap ties to attach vertical strongbacks to the form.

Features

  • The bracket eccentric compensates for lumber size imperfections.
  • The A82 bracket can also be used with double wales to support a horizontal plywood joint.

Downloads

A82 Jahn® “C” bracket Tech Data Sheet

How to Use the Jahn Forming System
