CombiForm System

$0.00

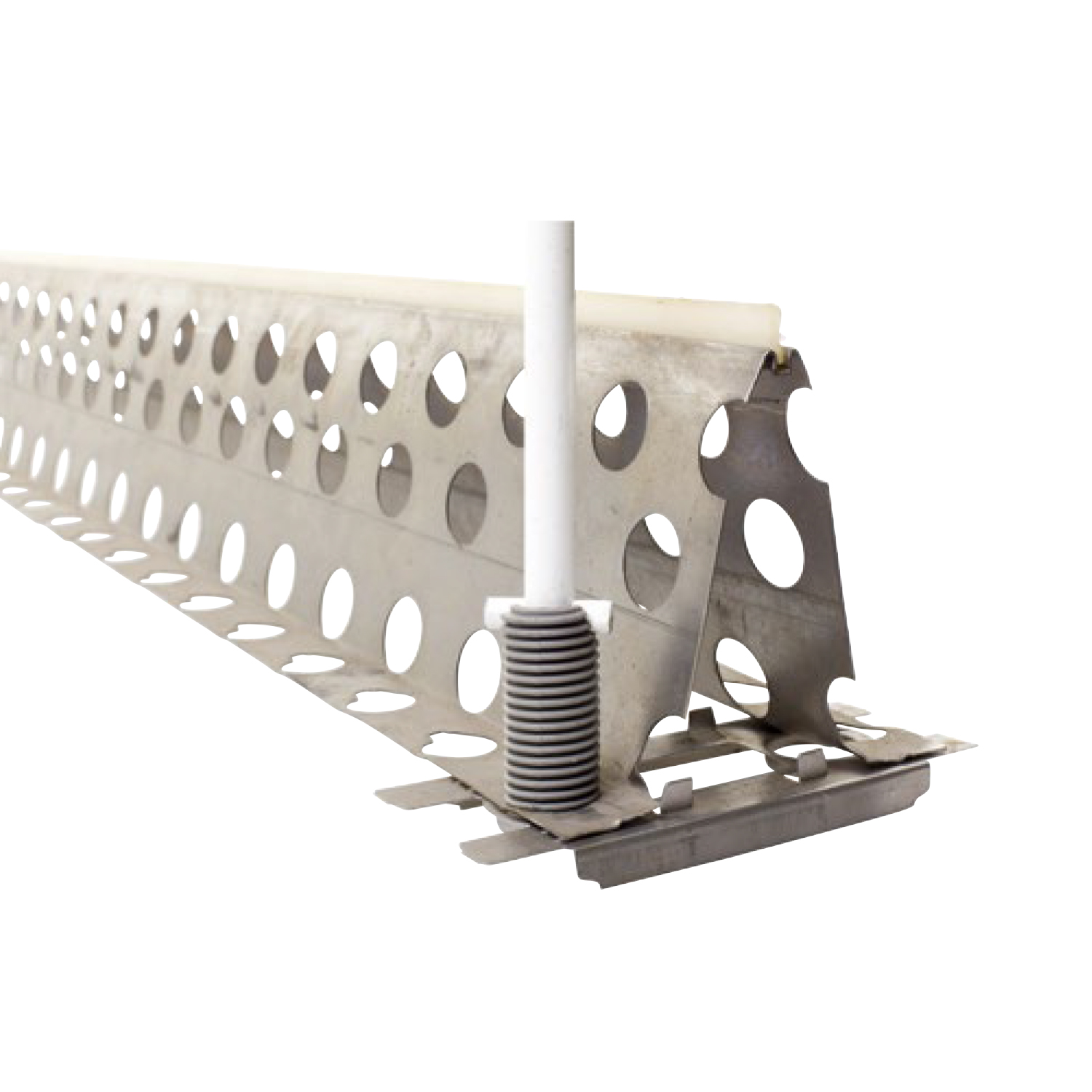

The CombiForm system is easy to set up, and it doesn’t require the concrete to be pre-leveled before screeding. Simply connect sections of CombiForm rail to create the span you need and level them with the adjusting screws. Once the rails are set, the operator pulls the screed on top of them to achieve a flat and level floor. In addition, the plastic strip creates a joint, which controls crack formation and reduces the need for floor sawing.

Features & Benefits

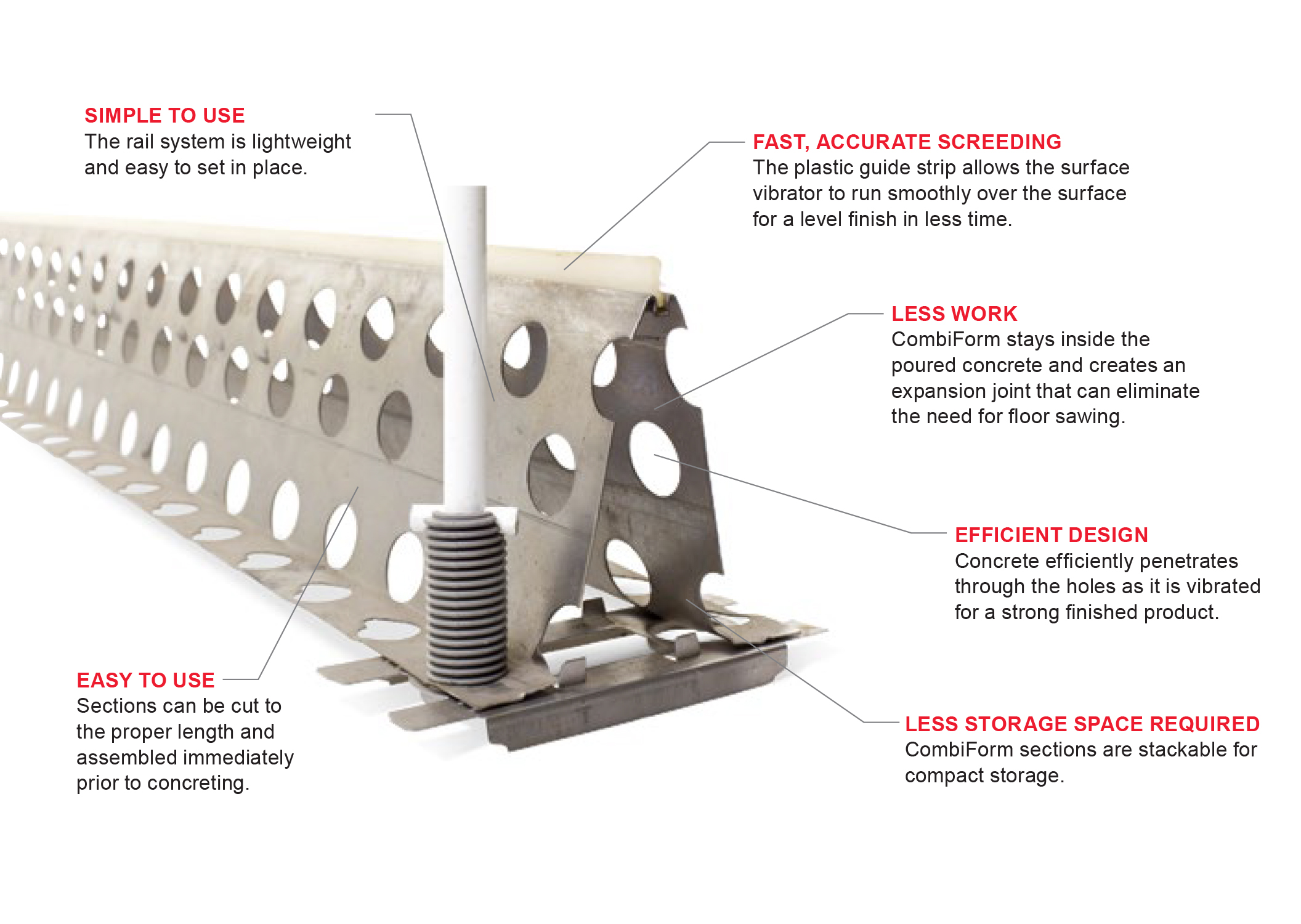

Lightweight rail system is easy to set in place
Plastic guide strip allows fast, accurate screeding
Holes allow concrete to penetrate when vibrated for a strong product
CombiForm stays inside poured concrete and creates an expansion joint
Sections can be cut and assembled immediately prior to concreting
Sections are stackable for compact storage

Applications
This versatile screed rail system is suitable for all beddings. All dimensions of reinforcement bars can be used. Clips, screws and other level adjustment accessories are available separately.

Downloads

Chicago Pneumatic Screed Rail Product Data

Description

		C 25	C 45	C 65	C 85	C 105	C 125	C 145
Length	m	3.5	3.5	3.5	3.5	3.5	3.5	3.5
Height	mm	25	45	65	85	105	125	145
Width	mm	80	90	105	115	130	135	160
Weight/m	kg	0.72	0.77	1.0	1.13	1.14	1.70	2.20
Weight/3.5 m	kg	2.5	2.7	3.5	4.0	4.9	6.0	7.7
Part Number		4700 0021 36	4700 0019 72	4700 0019 91	4700 0019 73	4700 0019 74	4700 0019 75	4700 0019 76

Note: CombiForm comes in 3,5 m sections and are sold in boxes of 10 sections. Orders must be placed in multiples of 10.

Locking clips are included with each 3,5 m CombiForm section to support normal beam loads.

CombiForm Accessories

	C 25	C 45	C 65	C 85	C 105	C 125	C 145
Locking Clip, 1 piece	–	4700 0028 09	4700 0028 10	4700 0028 11	4700 0028 12	4700 0028 13	4700 0028 14

	Ground Plate
Part Number	4700 0020 01

	Screw	Screw	Screw	Support	Support	Support	Support
Height (mm)	25	60	90	100	120	140	160
Pieces/box	100	100	100	1	1	1	1
Part Number	4700 0022 06	4700 0020 00	4700 0022 07	4700 0022 09	4700 0022 10	4700 0021 04	4700 0022 11

	Adjustment Tool	Adjustment Tool	Adjustment Tool (For handheld drill machine)	Leveling Stick	Elevating Strip
Height (mm)	440	1 300	–	–	30
Length (m)	–	–	–	–	3.5
Pieces/box	1	1	1	1	1
Part Number	4700 0020 28	4700 0020 27	3382 0106 42	4700 0020 29	4700 0022 08
