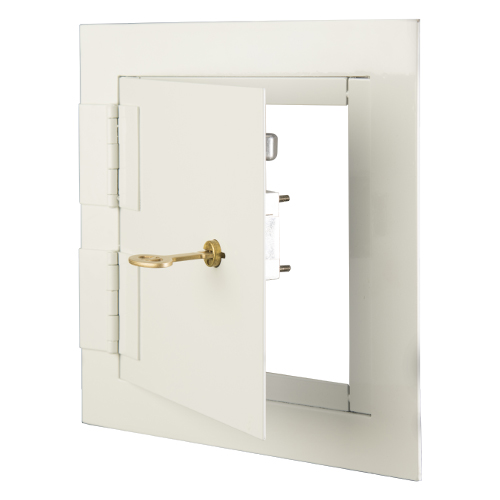

DSB-123SD – High Security

The DSB-123SD enables architects and institutions to bring maximum security to areas where access is required for repair or maintenance purposes.

Add to quote
Category: Brands: .

Description

Door Size
H × W (in.)		 Door Size
H × W (mm)		 Wall/Ceiling Opening
H × W (in.)		 Shipping Wt.
(lbs.)		 Shipping Wt.
(kg.)
12 × 12 305 × 305 12 1/2 × 12 1/2 35 15.9
16 × 16 406 × 406 16 1/2 × 16 1/2 44 20
18 × 18 457 × 457 18 1/2 × 18 1/2 49 22.3
24 × 24 610 × 610 24 1/2 × 24 1/2 65 29.5
36 × 24 914 × 610 36 1/2 × 24 1/2 80 36.4
36 × 36 914 × 914 36 1/2 × 36 1/2 115 52.3
