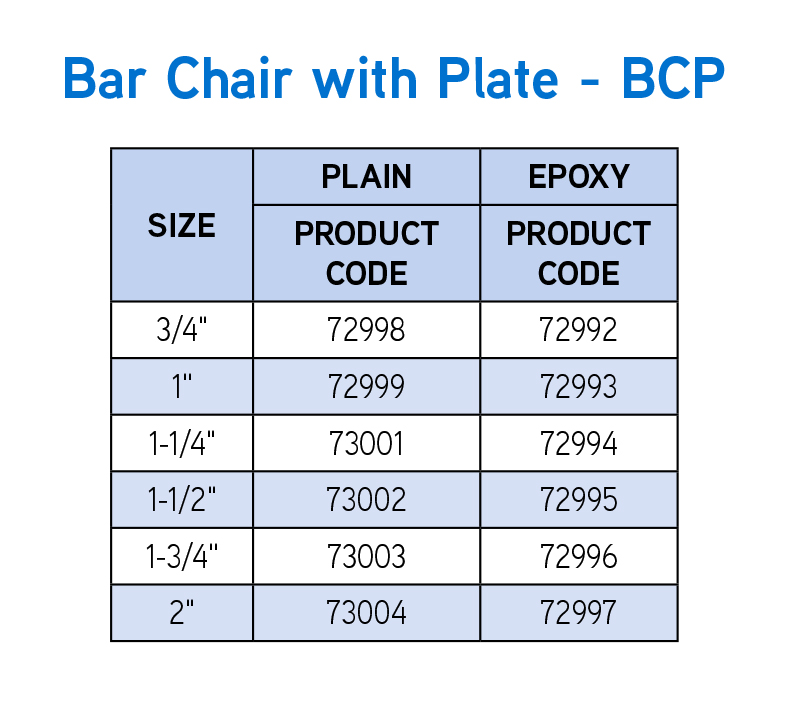

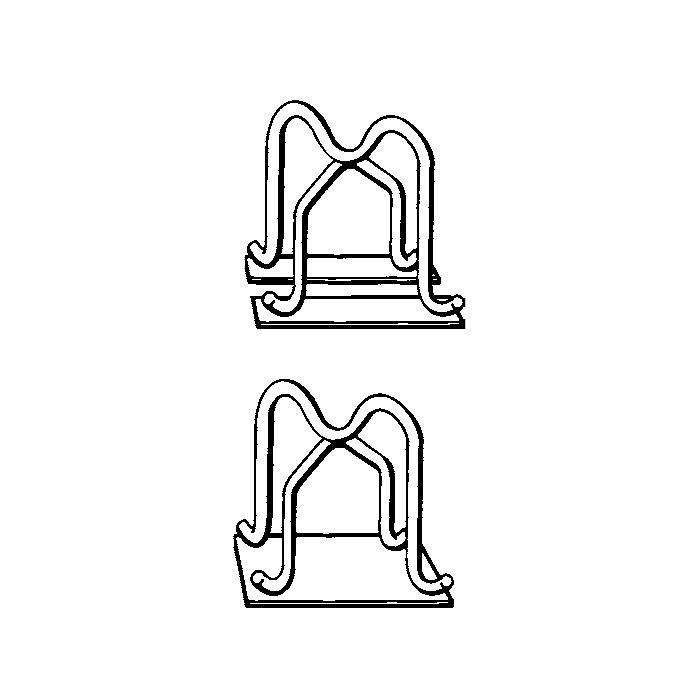

Bar Chair with Plate – BCP

To support wide spaced light steel in slab construction on loosely compacted soil, rock base, sand base or carton forms. Available in bright basic or epoxy coated.

Cover Height:

Available in heights of 3/4″ to 2″, in 1/4″ increments.

Features:

Steel plate provides bearing on forming surface to maintain chair at desired elevation.

Download Dayton Superior Bar Support Handbook
