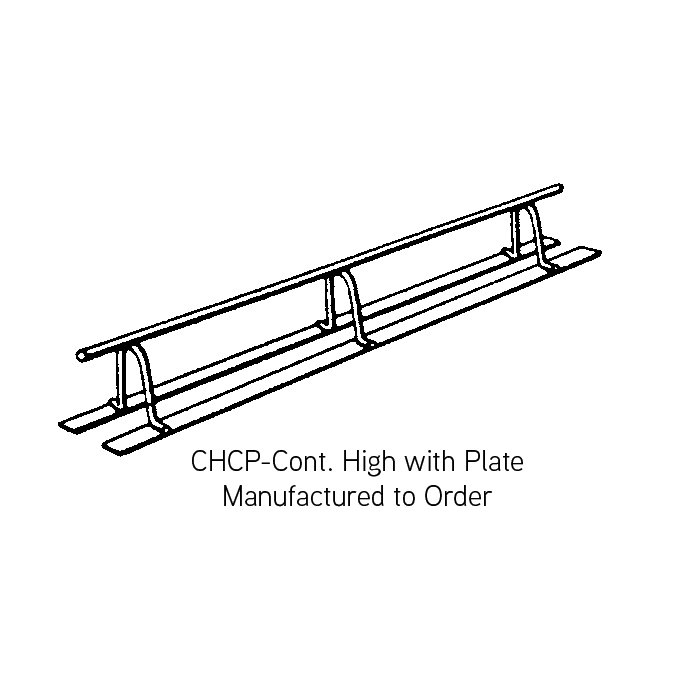

Continuous High Chair with Plate – CHCP

APPLICATION:

Continuous High Chair with Plate is designed to support upper slab steel on fill or sand base or carton form surface.

COVER HEIGHT:

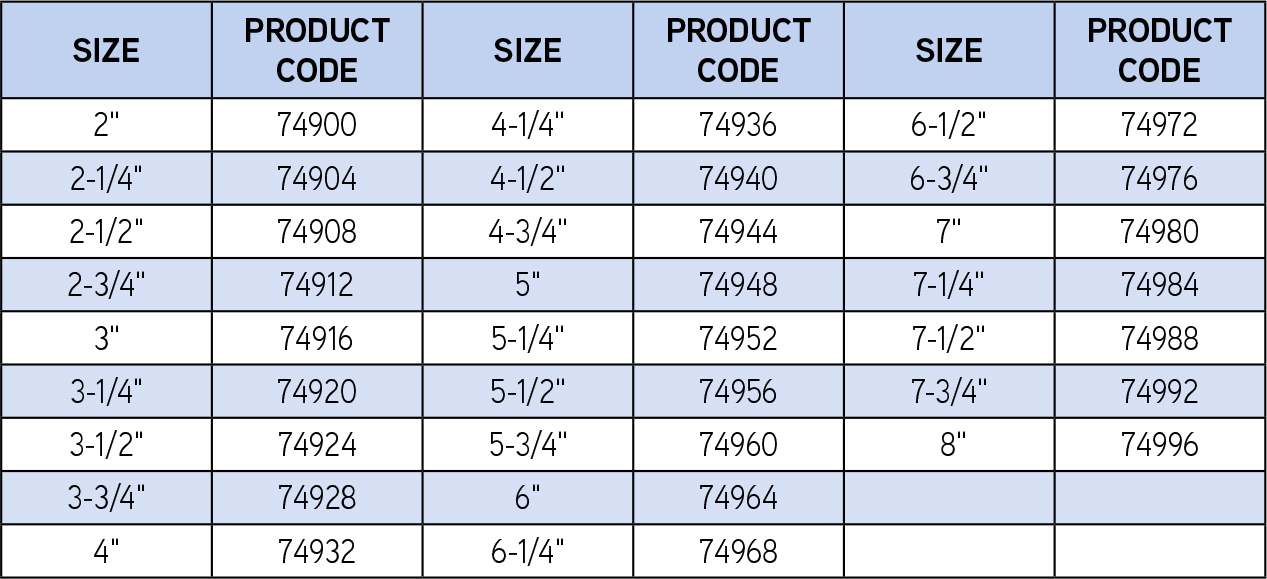

2″ to 15″ in 1/4″ increments.

FEATURES:

• 5 ft. long top wire eliminates the need for carrier bar to support upper steel.
• 1″ wide plates (2) provide bearing surface to keep CHCP at elevation while resting on fill or sand.

NOTE:

CHCP will not straddle lower steel due to the continuous bearing plates welded to legs.

Download Dayton Superior Bar Support Handbook
